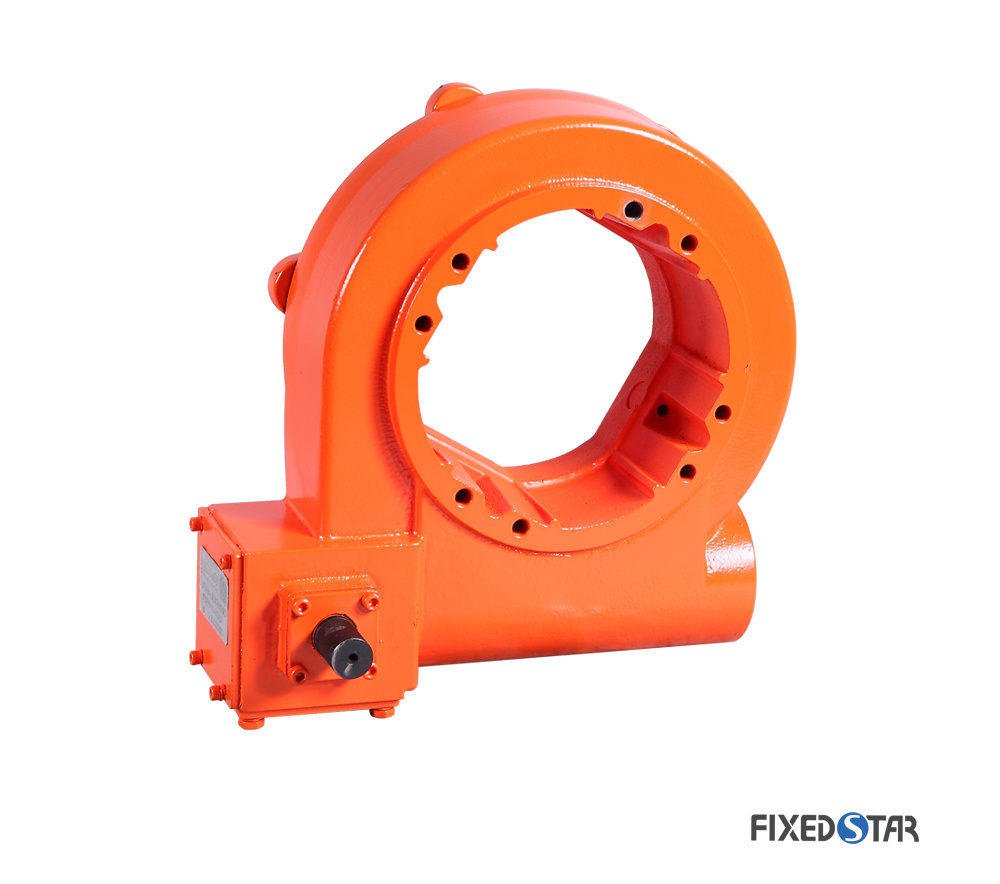

Solar Tracking Gearboxes

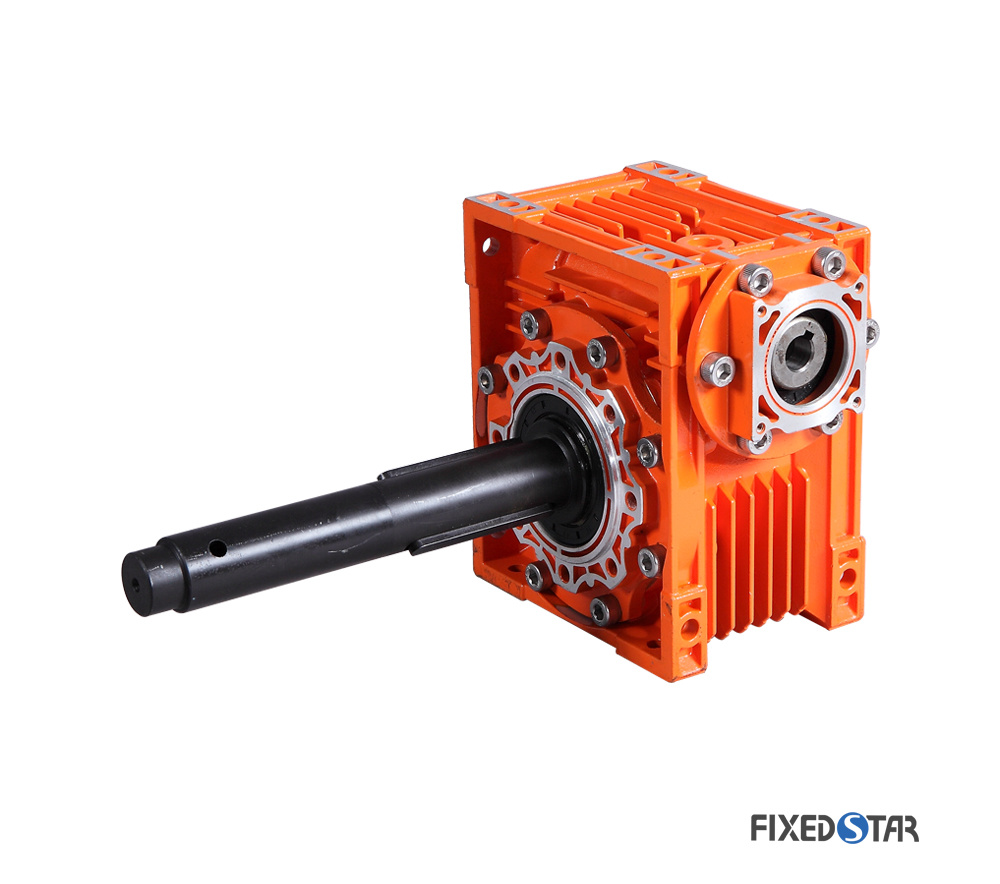

- Fixedstar Gearboxes are available in various options for Solar Tracking purpose—single or double drives, bronze or cast iron gears, standard worm gears or dual starts worm, double enveloping worm etc. They can be widely used in many industries such as Solar Tracking, Constructions, Metals, Lifts and so many more.
Fixedstar Started to supply slewing drives for a 10 MV CSP station since 2011 to Delingha, Qinghai China. Up to end of 2022, we have supplied more than 200,000 slewing drives to multiple Solar Power Station for both CSP and PV system.
| Housing | Cast Iron Grade QT550-600 or ADC12 Aluminum | |
| Wheel | Cast Iron Grade QT550-600 or Bronze | |
| Worm Shaft | 20CrMnTi or 40CrMo | |
| Ambient Temperature | -30- 80°C | |
| IP Class | IP 65 | |
| Efficiency | 35%-58% depending on Ratios | |
| Tracking Precision | 0.17° to 0.05° | |
| Rated Output Speed | ＜0.1RPM | |

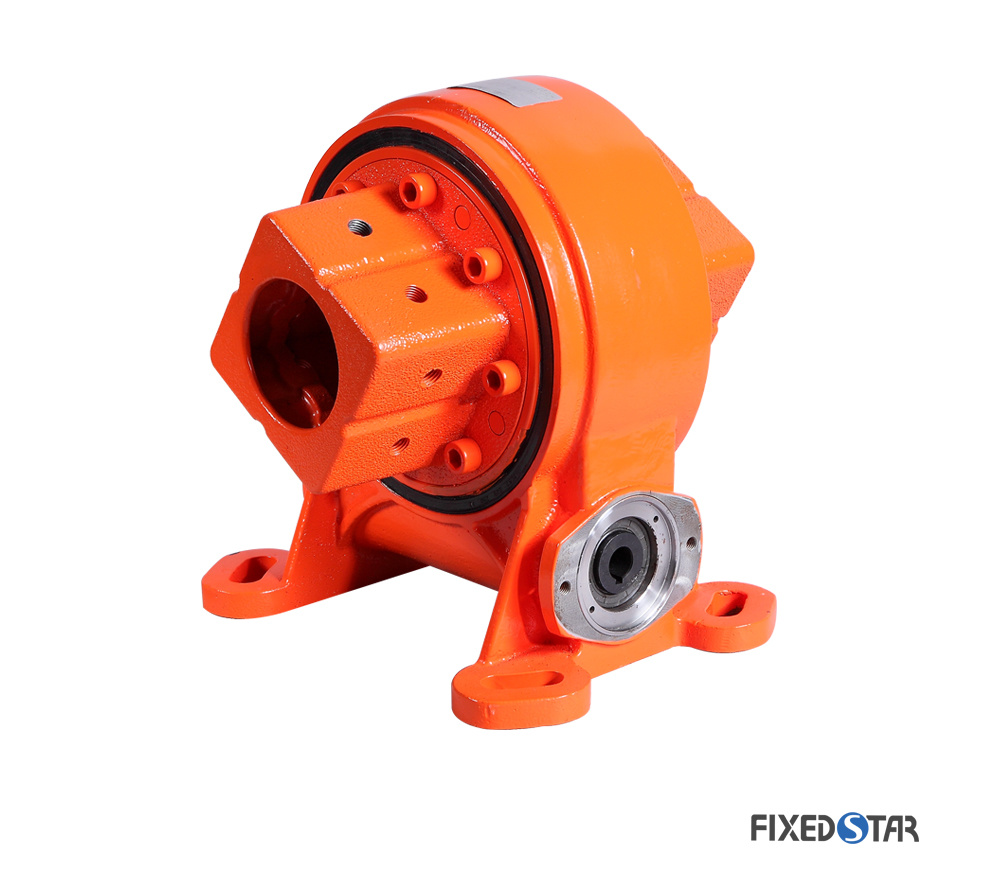

![Slewing Drive For Photovoltaic(PV)Power Generation]](https://omo-oss-image.thefastimg.com/portal-saas/pg2024112908482828266/cms/image/2ce1e2da-2e00-4d44-ba58-e67e63728d3f.jpg "Slewing Drive For Photovoltaic(PV)Power Generation]")
Our engineering teams of different major of gearboxes are ready to provide techincal support for customers who need new design, upgrading existing products, or professional advise on specific application of gearboxes.
